DJI SDR Transmission 2 (Pre-Order 30 Days)
DJI SDR Transmission 2 (Pre-Order 30 Days)
Offical Warranty
Guaranteed Quality
7-Days Returns
1 TX to 8 RX With Control, Multi-Group Transmission [1]

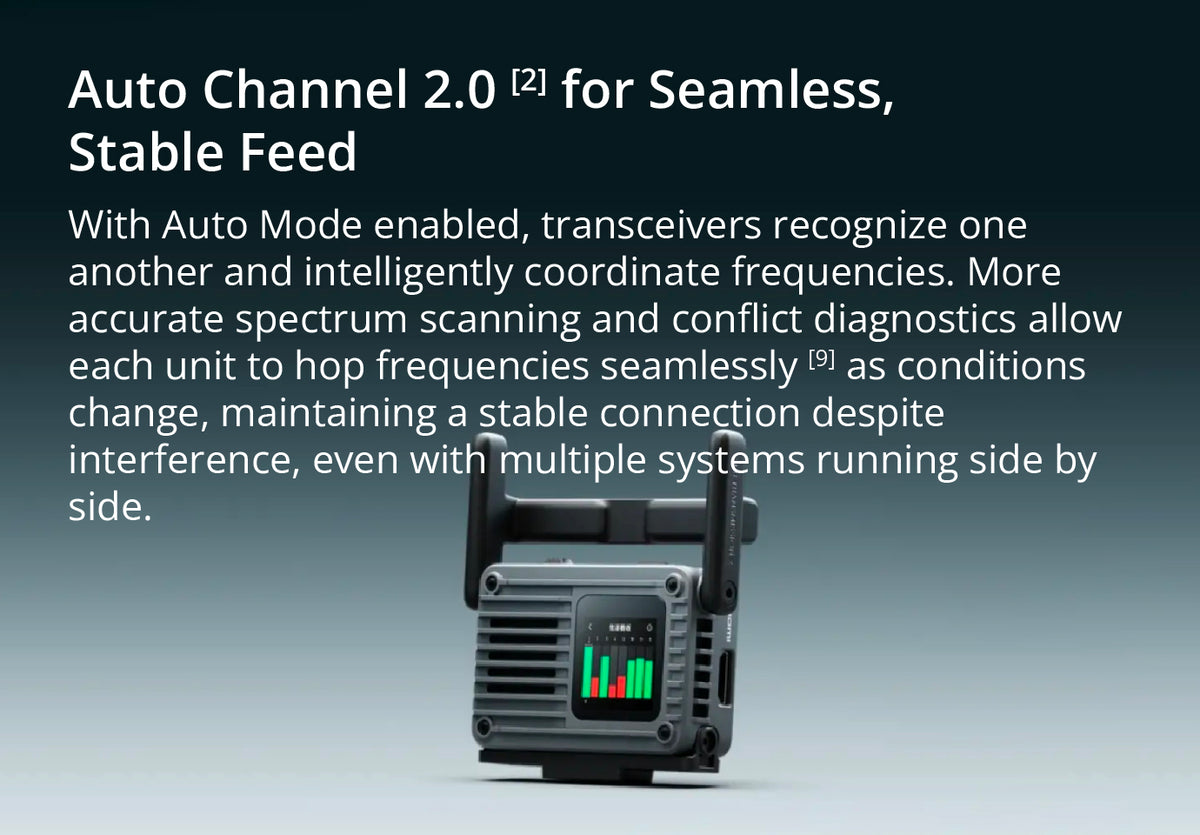

Auto Channel 2.0 [2] for Seamless, Stable Feed
TX/RX Switchable for Flexible Deployment
Pairing-Free Connection for Fast Camera Switching
Supports Ronin [6] Monitoring & Control

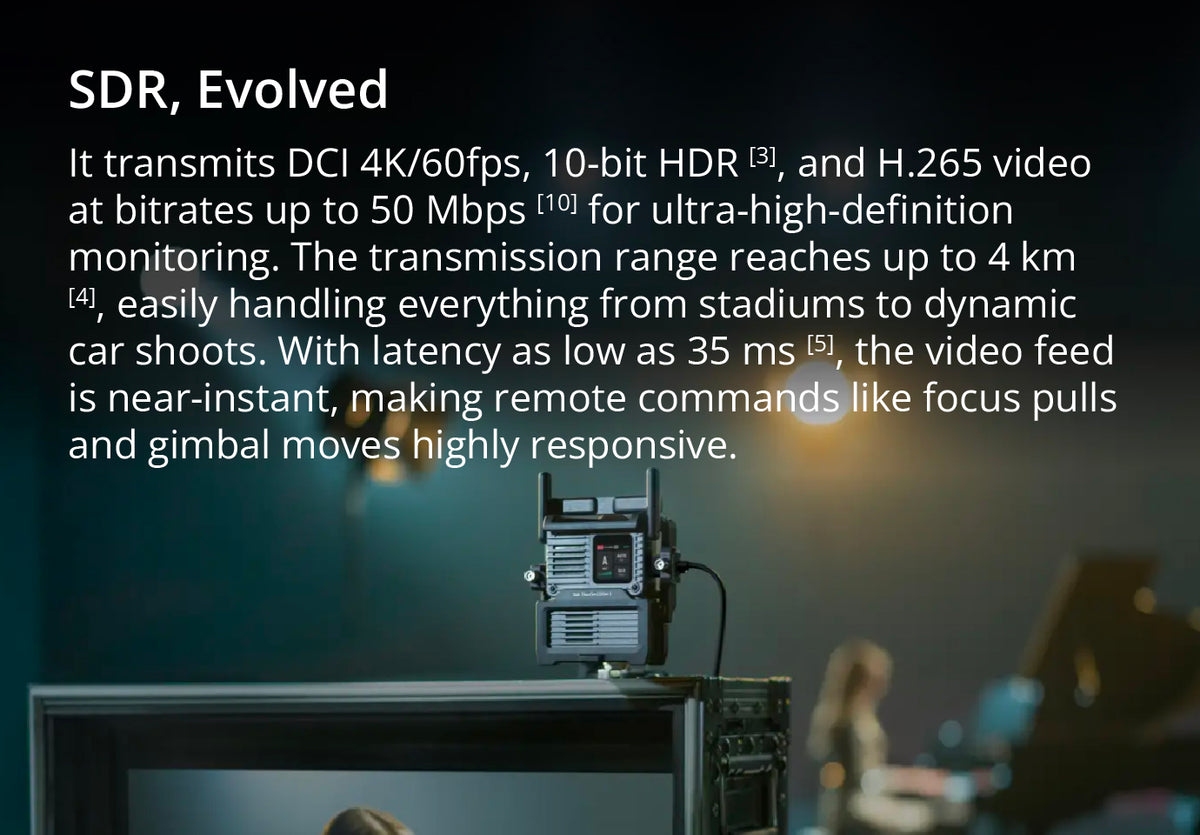

DCI 4K/60fps 10-bit HDR Wireless Transmission
Payment Methods:
Couldn't load pickup availability
Take a Closer Look

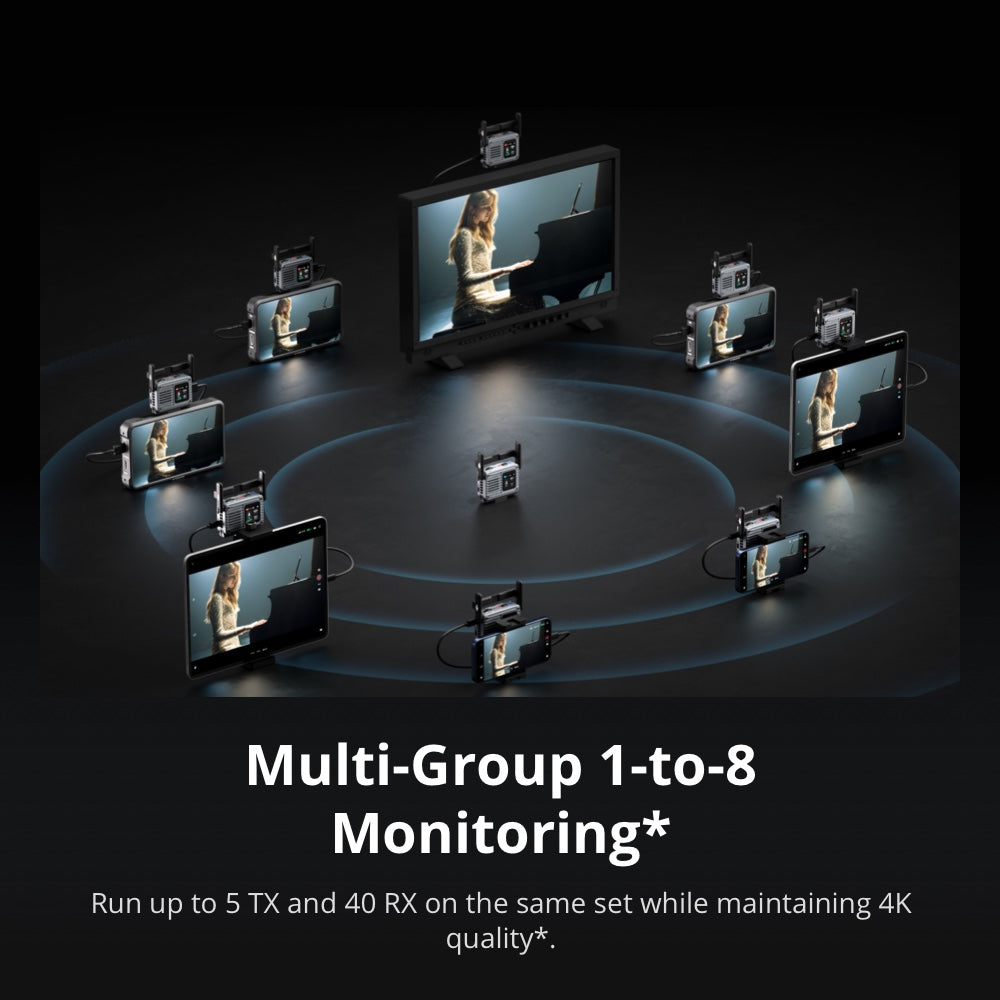

1 TX to 8 RX With Control, Multi-Group Transmission [1]
A single transmitter feeds up to eight receivers, each with remote control. Up to five transmitters and 40 receivers can operate simultaneously. Even in complex on-set environments, the wireless camera feed stays stable without sacrificing 4K image quality [3].

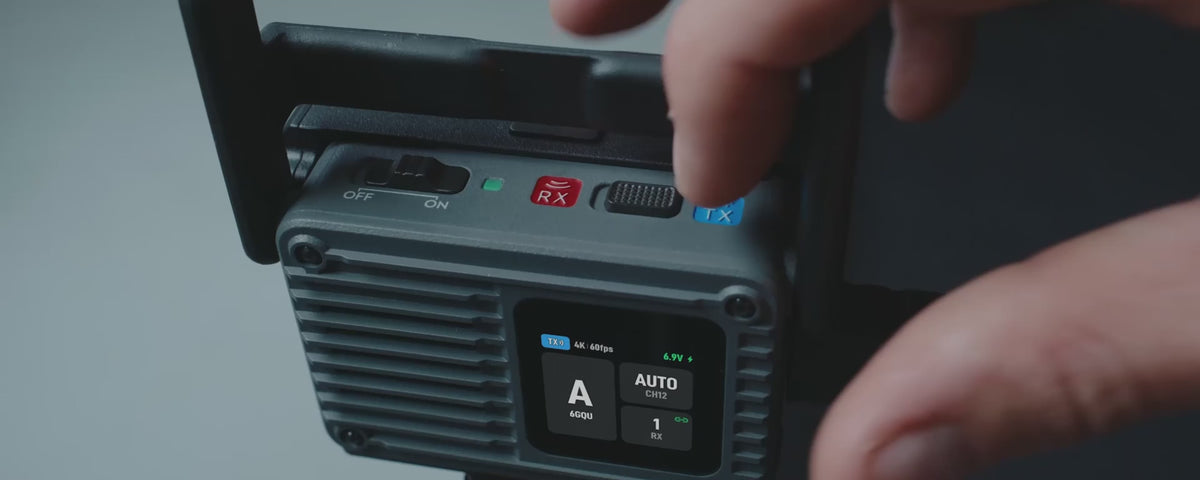

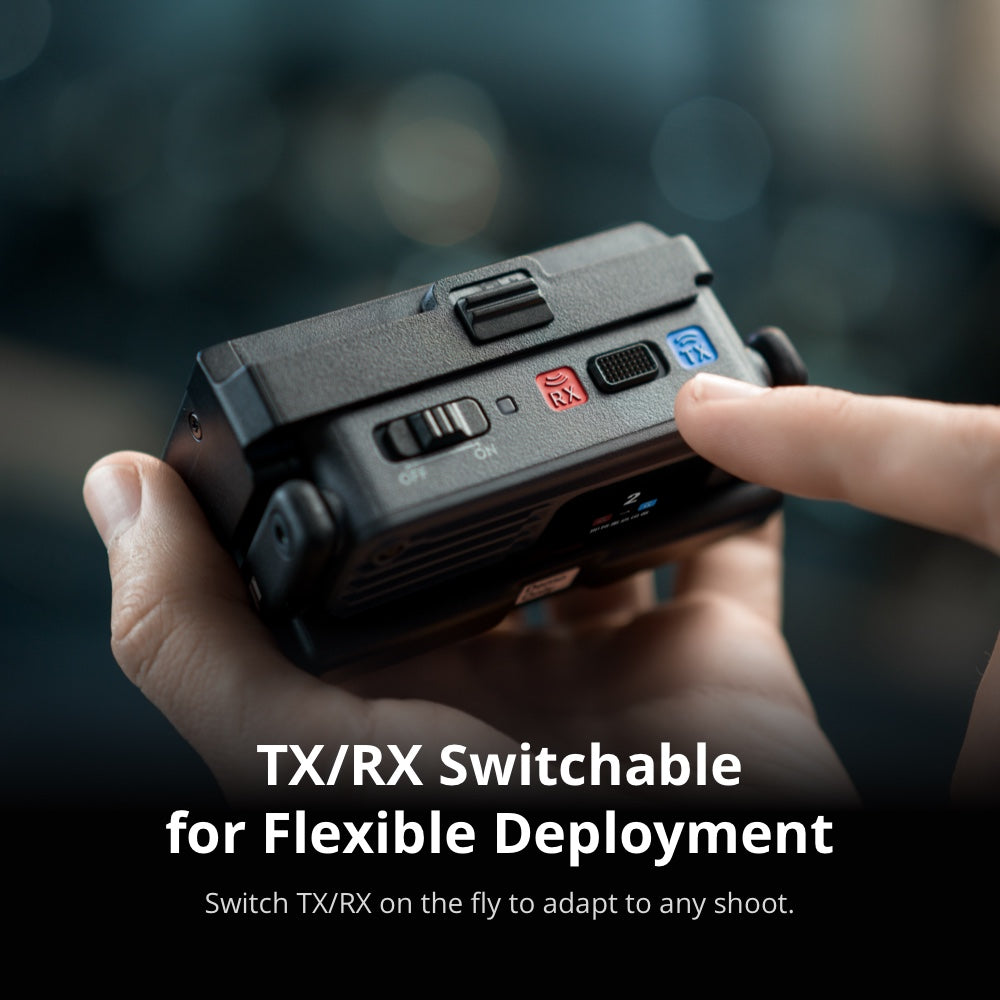

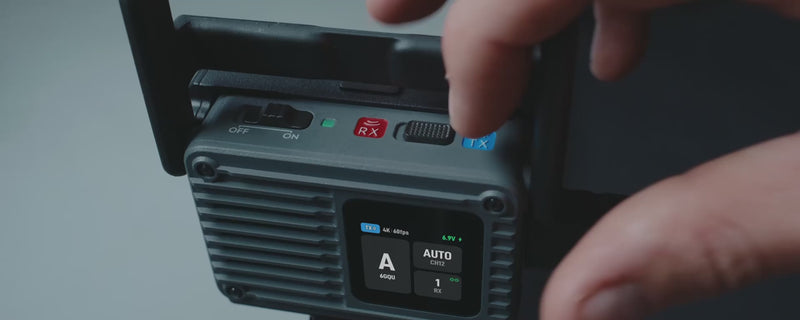

TX/RX Switchable
The transceiver design lets you switch between TX and RX on the fly. There is no need to decide your TX-to-RX ratio in advance, so every unit adapts to whatever the shoot calls for. Weighing only about 136 g, the unit reduces the load on handheld gimbals and mounts easily across a wide range of camera setups. It also provides 1 HDMI and 2 USB-C ports.
- * Actual experience may vary depending on the environment, usage, and firmware version. For details, visit the product page on the official DJI Store.
- 1. For the optimal transmission experience, it is recommended to operate no more than five transmitters simultaneously in the same area. DJI SDR Transmission 2 cannot be cross-connected with other DJI video transmission products.

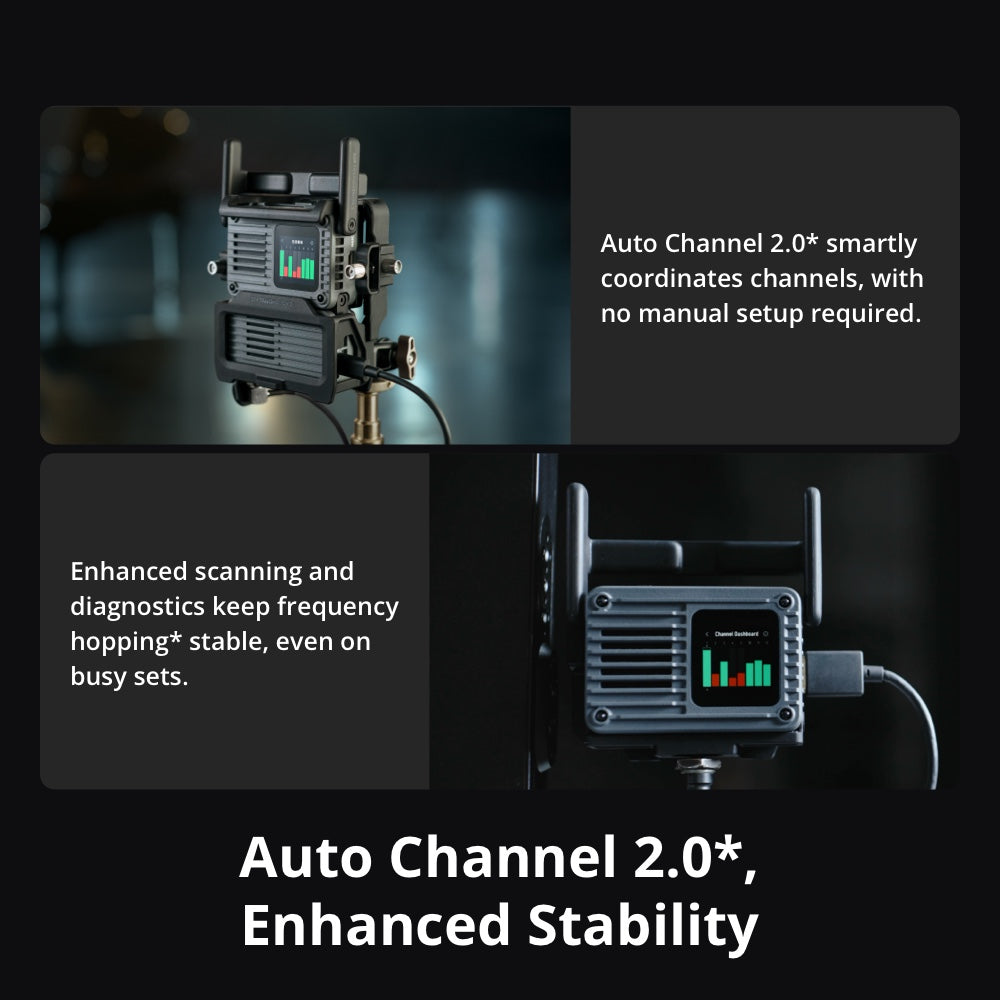

- 2. Auto Channel 2.0 activates when Channel Mode is set to Auto.
- 3. DCI 4K/60fps HDR requires connection via the HDMI or DP port (bottom USB-C port) on the transceiver main unit.
- 4. Measured under CE compliance using one TX and one RX in open, unobstructed, and interference-free controlled conditions.
- 5. Camera and screen display latency are not included. Measured when shooting 1080p/60fps and 4K/60fps video.
- 6. Supported models include DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2, and Master Wheels. Please note: When using with Ronin 2 or Master Wheels, the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin) is required (sold separately). When using with RS 4, RS 4 Pro, or RS 3 Pro, the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to CAN) is required (sold separately).
- 7. Supports Osmo Action 6 and Osmo Pocket series (Osmo Pocket 4 and later) via USB-C for monitoring and power supply.

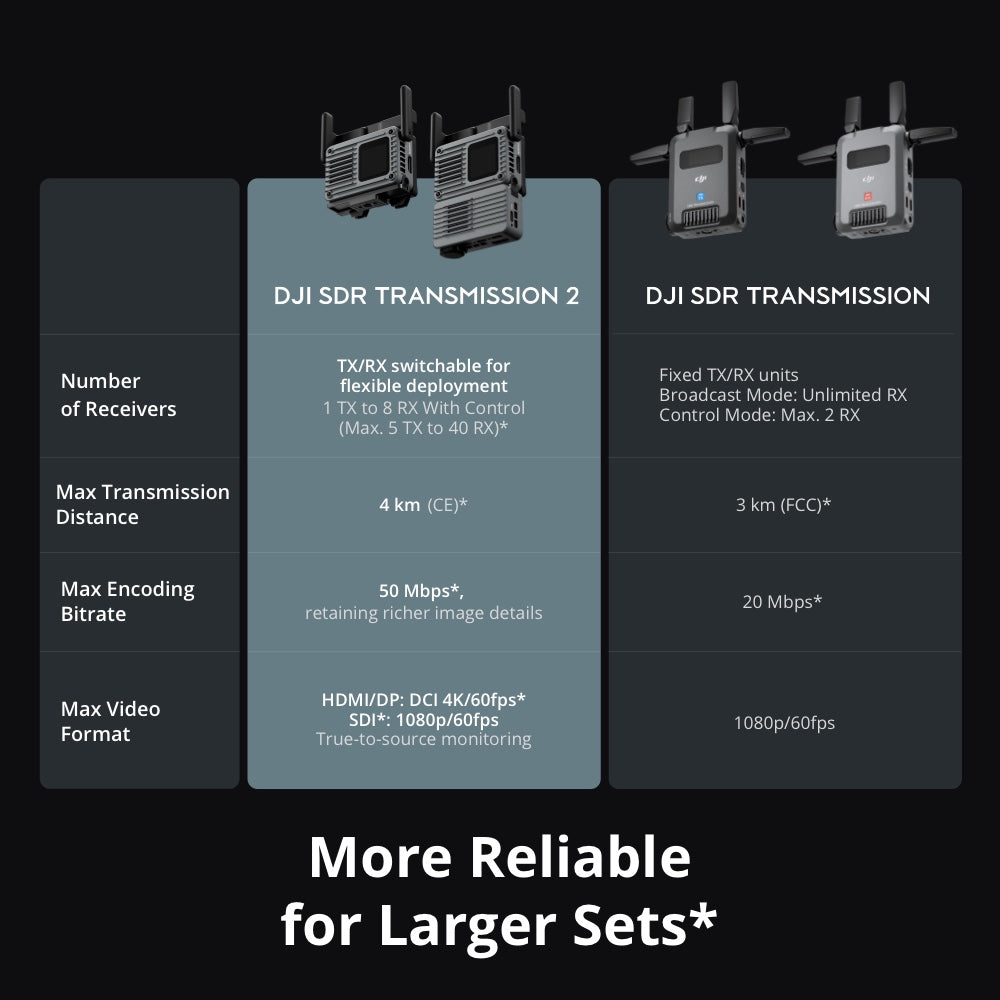

- 8. Compared to DJI SDR Transmission, this product features the upgraded Auto Channel 2.0, delivering better transmission performance when multiple groups of transmitters and receivers operate simultaneously. It supports video quality up to DCI 4K/60fps with a maximum encoding bitrate of 50 Mbps, and a transmission range of up to 4 km.
- 9. The 5.8 GHz and DFS frequency bands are prohibited in certain countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.
- 10. The maximum encoding bitrate is 50 Mbps, measured under controlled conditions. Actual encoding and transmission bitrates may vary depending on the environment and transmission distance.

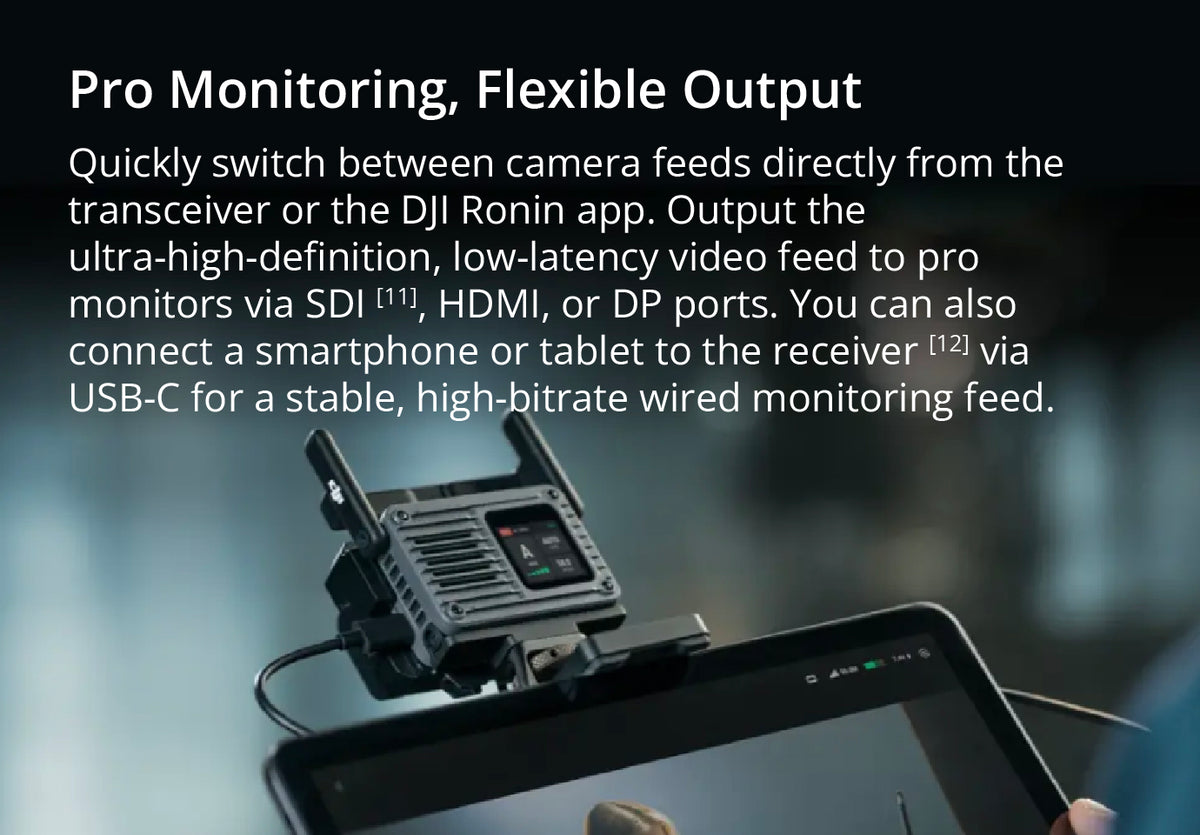

- 11. The SDI port is available on the DJI SDR Transmission 2 Expansion Plate, which is sold separately.
- 12. Connect the transceiver (RX) to a smartphone or tablet via a USB-C to USB-C or USB-C to Lightning cable. Cable is not included.
